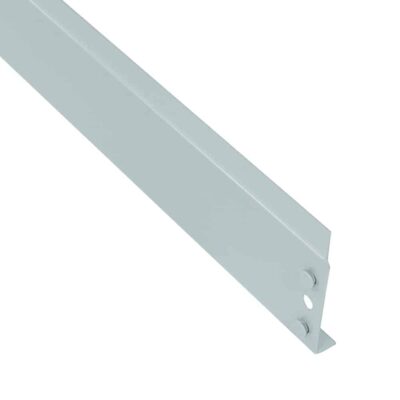

Rivet Rack Shelving Heavy-Duty “C” Channel Beam

Description

It’s easier than ever to build your own Rivet Rack Shelving system! Use Republic’s rivet rack shelving “C” channel beams to create your ideal boltless rack. Republic’s rivet rack shelving is an economical solution for a variety of storage needs. This boltless racking system is ideal for use in either retail or other commercial use such as an office. This boltless metal rack allows access to items from all sides. The superior look and design of our boltless rivet shelving means it can work in the warehouse as well as on the sales floor. We offer our “C” channel beams with a durable powder coat finish available in Dove Gray.

Double Rivet Beam Features

Our 14-gauge heavy-duty beams feature double rivets. This double rivet design creates rigid assembly. Our heavy-duty beams also have a “C” channel design which greatly adds to the strength and weight capacity. The rivets easily slide into the keyhole slots on the uprights. The keyhole slots allow your levels to easily adjust on 1-1/2-inch centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change.

You should only use rivet rack shelving “C” channel beams for the width dimension of your rack level. Use two depth beams and two width beams to create a level. The depth dimensions of your level should not exceed 48 inches. Please note that a level should use double rivet beams all side and cannot mix with other beams.

Assembly and Installation

The rivet rack shelving “C” channel beams are easy to assemble without tools. Each level you build should consist of four beams. 72-inch-wide beams should use at least one center support while 96-inch-wide beams should use two. Republic strongly recommends that all Industrial Metal Shelving be properly anchored. Make sure your metal storage racks are installed plumb and level before anchoring them to the floor and/or wall. Use the rivet rack foot plates and wedge anchors to anchor your posts to the floor.

Optional Decking

Republic also offers many decking options for your “C” channel beams! Particle board decking is 5/8-inch thick and will be pre-cut to fit your boltless storage racks. Particle board decks are a durable and economical option for boltless steel racks. They are strong enough to handle most general storage applications. Wire decking features a 6-gauge 2″ x 4″ wire mesh. These decking panels feature a baked on enamel finish. Wire decking also meets fire code standards for when you require sprinkler access to the levels of a storage rack.

View more Rivet Rack Shelving Components from Republic

Additional information

NOTE: Beam used in width direction will determine capacity of level.
